Need help!! Bi-plane ailerons

Old 04-11-2011, 03:06 AM
  #1
Don Sims
Administrator
Thread Starter

Don Sims's Avatar

Join Date: Sep 2005
Location: Middle Tennessee
Posts: 15,348
Default Need help!! Bi-plane ailerons

A new member sent me this.... can you give him a hand??


I'm making my first foamie bi-plane. I'm trying to hook up the ailerons. I have 2 on top, & 2 on the bottom. What do you use to connect them? How do I connect the pushrods for the ailerons to 1 servo? If you could send me pics. that would be great. I thank you very much for your help.

Tim
Don Sims is offline
Old 04-11-2011, 04:13 AM
  #2
FlyingMonkey
Flite Test Fan

FlyingMonkey's Avatar

Join Date: Apr 2007
Location: 32459
Posts: 8,930
Default

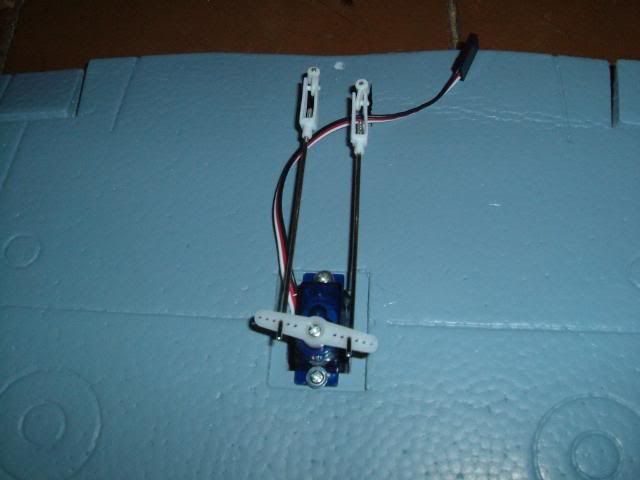

The Eflite foam ultimate bipe had a great set up. The servo was in the lower wing, and had a push rod from each side of the servo. These connected to the inside portion of the lower ailerons.

Out in the middle of the ailerons, was a tab that stuck straight back, with a hole in it. With a z bend in each end, there was a control rod fitted from the lower aileron, to the upper. This way one servo could control 4 ailerons.

FlyingMonkey is offline
Old 04-11-2011, 05:24 AM
  #3
tobydogs
love to build!

tobydogs's Avatar

Join Date: Jan 2010
Location: nj usa
Posts: 3,693
Default

thats the way I'd do it,good description FM!

if the servo is inside the fuse then control arms are hidden in the Te , but a very easy solution is to mount the servo like this....a landing gear is a must obviously.
Attached Thumbnails Click image for larger version

Name:	minisport 045.jpg
Views:	569
Size:	127.3 KB
ID:	146357   Click image for larger version

Name:	minisport 115.jpg
Views:	559
Size:	67.7 KB
ID:	146358
tobydogs is offline
Old 04-11-2011, 05:38 AM
  #4
Wildflyer
Past President of PSSF

Wildflyer's Avatar

Join Date: Sep 2009
Location: Lacey WA, 1 mile E of Mushroom Corner
Posts: 2,194
Default

I set up a Pitts biplane with 4 ailerons, and used exactly what FlyingMonkey described. I used about 3/32 aluminum tubing flattened and drilled for connector, on one end and scratched up with sand paper and glued into trailing edge of ailerons, on the other end, make 4, works great. I let the tubes stick out about 1/4"
Wildflyer is offline
Old 04-13-2011, 01:48 AM
  #5
TimMarkham
New Member

Join Date: Apr 2011
Location: Mukwonago, WI
Posts: 19
Default

Hi FM,
Do you have any close up pics. for me? I need some sort of diagram. I thank you very much.

Tim
TimMarkham is offline
Old 04-13-2011, 03:12 AM
  #6
FlyingMonkey
Flite Test Fan

FlyingMonkey's Avatar

Join Date: Apr 2007
Location: 32459
Posts: 8,930
Default



FlyingMonkey is offline
Old 04-13-2011, 03:19 AM
  #7
FlyingMonkey
Flite Test Fan

FlyingMonkey's Avatar

Join Date: Apr 2007
Location: 32459
Posts: 8,930
Default

FlyingMonkey is offline
Old 04-13-2011, 03:20 AM
  #8
FlyingMonkey
Flite Test Fan

FlyingMonkey's Avatar

Join Date: Apr 2007
Location: 32459
Posts: 8,930
Default

FlyingMonkey is offline
Old 04-13-2011, 03:32 AM
  #9
hillbillynamedpossum
Rode the short bus

hillbillynamedpossum's Avatar

Join Date: Aug 2009
Location: West Plains MO USA
Posts: 721
Default

My early "Possum Holler Bipe" foamy had a setup just about like that but with the servo in the middle of the upper wing. The later revisions only used upper ailerons.

My "Bipe 33" uses 2 aileron servos, but the tie rods are the same. Ive never had any problems that werent directly caused by pilot error. Reckon I need to be a better pilot!

Possum
hillbillynamedpossum is offline
Old 04-13-2011, 09:44 AM
  #10
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 6,122
Default

Originally Posted by stuart View Post
thats the way I'd do it,good description FM!

if the servo is inside the fuse then control arms are hidden in the Te , but a very easy solution is to mount the servo like this....a landing gear is a must obviously.
Actually that's not a great way to do it. With the linkages 'splayed' out at an angle like that and using a straight servo arm you will get considerable differential movement on the ailerons. it's not so bad if the servo is on top of the wing because that way the differential will be 'the right way' (i.e. up-going aileron moved further than down-going one) but with the servo on the bottom you will get inverse differential that will potentially cause all sorts of handling problems.
What you should always look for on any pushrod is, with the control centred, an angle of 90Deg between the pushrod and servo arm. Also at the other end of the pushrod you should look for 90 Deg between pushrod and a line drawn between control surface hinge line and the hole in the control arm.
You should only deviate from the 90Deg rule if you are intentionally designing in differential movement.
The arrangement in the photo could be fixed by using a circular servo arm and mounting the pushrods in a more forward facing hole such that you achieved the desired 90deg between pushrod, hole in arm, and servo output shaft.

Steve
JetPlaneFlyer is offline
Old 04-14-2011, 07:31 PM
  #11
flypaper 2
Super Contributor

flypaper 2's Avatar

Join Date: Jul 2005
Location: Kingston Ont. Can.
Posts: 1,237
Default

Also the pushrod between the ails should have the hinge point at the centre of the trailing edge where it comes to a point.. If not, as in using a horn mounted at the bottom of the upper ail and the top of the lower ail. will make one ail move further than the other at full deflexion.

Gord.
flypaper 2 is offline
Old 04-14-2011, 08:46 PM
  #12
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 6,122
Default

Originally Posted by flypaper 2 View Post
Also the pushrod between the ails should have the hinge point at the centre of the trailing edge where it comes to a point.. If not, as in using a horn mounted at the bottom of the upper ail and the top of the lower ail. will make one ail move further than the other at full deflexion.

Gord.
Thats true, in the ideal world that's how it should be done, like the Eflite ultimate earlier in this thread..
In practice you can 'get away with it' ok if you connect as near as flush with the surface of the aileron and as far back as practical, as FlyingMonkey did it on his yellow biplane.

Steve
JetPlaneFlyer is offline
Old 04-14-2011, 11:20 PM
  #13
Wildflyer
Past President of PSSF

Wildflyer's Avatar

Join Date: Sep 2009
Location: Lacey WA, 1 mile E of Mushroom Corner
Posts: 2,194
Default My answer to Biplane aileron hookup

To clarify my previous post,

I did not like the appearance of the control horns mounted on the top and bottom of the ailerons, even though that is what was shown on the plans. Plus I did not want a differential movement in the secondary ailerons.

So I stopped work on the Pitts until I came up with this idea, it is aluminum tubes flattened on the end and roughened on the rest, drilled and epoxied into the aileron, almost to the hinge line. I made a little jig out of hardwood to center the drill bit on the thin edge of the ailerons, sorry I didn't keep it. It was just an 1/8' hole in a piece of wood with 2 strips glued on, centered on the hole, and spaced so the edge was a snug fit.

I get equal movement, and I don't think it looks too bad.

I think these pictures will it explain better, I am not a great writer
Attached Thumbnails Click image for larger version

Name:	PICT4606.jpg
Views:	1053
Size:	119.0 KB
ID:	146566   Click image for larger version

Name:	PICT4607.jpg
Views:	620
Size:	42.2 KB
ID:	146567   Click image for larger version

Name:	PICT4608.jpg
Views:	618
Size:	69.4 KB
ID:	146568
Wildflyer is offline
Old 04-15-2011, 12:47 AM
  #14
flypaper 2
Super Contributor

flypaper 2's Avatar

Join Date: Jul 2005
Location: Kingston Ont. Can.
Posts: 1,237
Default

Great job. Looks a lot cleaner too.
flypaper 2 is offline
Old 04-15-2011, 12:54 AM
  #15
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 6,122
Default

Wildflyer,

That linkage is ideal from a linkage geometry point of view. The problem i had with doing it that way is that my ailerons were built up balsa construction and the tube would have cut in two the strip of balsa that forms the trailing edge, which would have severely weakened the aileron in the exact place which sees most stress.

So i made up a flush mounted linkage.. While theoretically less than 100% perfect there is in practice no discernible differential aileron movement.

Steve
JetPlaneFlyer is offline
Old 04-15-2011, 01:41 AM
  #16
quorneng
Super Contributor

quorneng's Avatar

Join Date: Jul 2008
Location: Cheshire, UK
Posts: 2,036
Default

Of course you don't have to use a push rod between the ailerons on a biplane, Sopwith didn't!
My foamy Pup used a single closed loop wire connecting all four ailerons just like the original.
These pictures show the cable running from the servo out under the lower wing.
Click image for larger version

Name:	Closeloop1S.jpg
Views:	347
Size:	23.2 KB
ID:	146587
Up from the trailing edge of the lower aileron to the upper.
Click image for larger version

Name:	Closeloop2S.jpg
Views:	378
Size:	37.5 KB
ID:	146588
Across the top wing.
Click image for larger version

Name:	Closeloop3S.jpg
Views:	309
Size:	35.2 KB
ID:	146589
Repeated for the other side and eventually back to the servo in the fuselage.
Tricky to set up correctly (just like the real thing!) but very light.
And it worked.
quorneng is offline
Old 04-15-2011, 05:32 AM
  #17
Wildflyer
Past President of PSSF

Wildflyer's Avatar

Join Date: Sep 2009
Location: Lacey WA, 1 mile E of Mushroom Corner
Posts: 2,194
Default

Jetplaneflyer,

That's great Steve, each plane deserves it's own solution.
I guess you might have filled in a small space, but I'm truly glad you got it hooked up. This was just my solution on my little Pitts,
I have several biplane kits, but I don't know how I will hook up the next one.
There are many ways to do it, some better than others. The main thing is to make sure the linkage works good, and does not come loose or bind, and has very little slop in the setup. I may do my Sopwith Pup as quorneng described.
I have seen some hookups from beginners you would not believe, pushrod epoxied to servo and control horn was a real good one.
Wildflyer is offline
Old 04-21-2011, 08:19 AM
  #18
solentlife
Super Contributor

solentlife's Avatar

Join Date: Oct 2010
Location: Ex UK Brit now in Latvia west coast - Ventspils
Posts: 12,787
Default

Originally Posted by flypaper 2 View Post
Also the pushrod between the ails should have the hinge point at the centre of the trailing edge where it comes to a point.. If not, as in using a horn mounted at the bottom of the upper ail and the top of the lower ail. will make one ail move further than the other at full deflexion.

Gord.
As long as distance from hinge line is same for both top and bottom ailerons - its fine.

For the wing with widely splayed servo to aileron rods ... I would have modified to use cable .... ie servo arm fore-aft ... cable and outer eiether side at 90 then a nice curve round to face the aileron horn exact in line. The cable outer can be buried nicely into the wing.
OR
The traditional torque tube method where aileron is fitted to a torque tube rod along hinge line ... other end via tube in static part of wing to exact in line with servo ... exiting vertically to have rods connected ...



Despite some comments you hear - done correctly it works very well.
solentlife is offline
Old 04-21-2011, 03:20 PM
  #19
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 6,122
Default

Originally Posted by solentlife View Post
As long as distance from hinge line is same for both top and bottom ailerons - its fine..
it's not quite that simple.. What you are really looking for is an angle of 90 deg (or very close) between the pushrod and an imaginary line drawn between the clevis pin and the hinge... on both top and bottom wings.

just having the same distance between clevis pin and hinge isnt good enough. As example of this see attached diagram (this is what was actually recommended in one instruction manual I had) for a linkage that wouldnt work at all, but which has equal hinge line to pin distances:
Attached Thumbnails Click image for larger version

Name:	4475_001.jpg
Views:	306
Size:	19.2 KB
ID:	147037
JetPlaneFlyer is offline
Old 04-22-2011, 08:50 AM
  #20
Wildflyer
Past President of PSSF

Wildflyer's Avatar

Join Date: Sep 2009
Location: Lacey WA, 1 mile E of Mushroom Corner
Posts: 2,194
Default

If sides of a parallelogram are equal to the opposite side ( by definition they must be ), with a pivot at each point of intersection, no matter what you do, the sides will stay parallel, it can not get out of parallel.

If the hinge line to hinge line distance is the same as the center to center distance for the connecting link, and the hinge line to the connecting link distance is equal top and bottom. Then the ailerons will move the same.

Try it with 4 sticks of wood, just keep opposing sides equal.

( I lived next door to a geometry teacher when I was in high school, I didn't dare not understand geometry or I was toast. )
Wildflyer is offline
Old 04-23-2011, 03:30 PM
  #21
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 6,122
Default

Originally Posted by Wildflyer View Post
If the hinge line to hinge line distance is the same as the center to center distance for the connecting link, and the hinge line to the connecting link distance is equal top and bottom. Then the ailerons will move the same.
That's almost true.. the key issue there being that the hinge to hinge and pushrod lengths need to be equal (which Solentlife didn't state)

However even with hinge to hinge and pushrod lengths being the same it's possible to come up with an arrangement that wont work.. see attached. The problem with the arrangement I've sketched is that although movement of both ailerons would be equal it would be a lottery if they moved in the same or opposite directions!
Attached Thumbnails Click image for larger version

Name:	IMG.jpg
Views:	398
Size:	56.0 KB
ID:	147192
JetPlaneFlyer is offline
Old 04-23-2011, 03:34 PM
  #22
dkrhardy
Member

Join Date: Dec 2010
Location: Wetumpka AL (Montgomery area)
Posts: 543
Default

On my Waco biplane the control rod goes from trailing edge to trailing edge.
dkrhardy is offline
Old 04-23-2011, 04:17 PM
  #23
solentlife
Super Contributor

solentlife's Avatar

Join Date: Oct 2010
Location: Ex UK Brit now in Latvia west coast - Ventspils
Posts: 12,787
Default

Originally Posted by JetPlaneFlyer View Post
That's almost true.. the key issue there being that the hinge to hinge and pushrod lengths need to be equal (which Solentlife didn't state)

However even with hinge to hinge and pushrod lengths being the same it's possible to come up with an arrangement that wont work.. see attached. The problem with the arrangement I've sketched is that although movement of both ailerons would be equal it would be a lottery if they moved in the same or opposite directions!
Forgive me for puttiing it bluntly - the diagram you show with pushrod through slot and based on close to hinge line is daft ! Anyone who made such is asking for trouble.

For servo to control surface - you want connection to be in-line with hinge as best as possible. For interconnecting rods between surfaces such as biplane ailerons ... best is actually as far from hinge line as possible so as to 'firm-up' the connection and reduce flutter.
In practical terms that's the connector in T/E of the aileron.
Given the geometry exercise that some have brought into this ... then reference has to be made to where in the depth of the wing to aileron face is the hinge. If it's centred - that is half way between top and bottom surface and T/E is similar - then it makes no difference and if distance from hinge line is same on both ailerons - movement will be identical. The time it will MINUTELY differ is when the hinge line is NOT centred ... ie a top hinge by tape or similar.

Back to practicalities ........... rod between T/E's is the oft seen solution and works.

I'm soon to be owner again of one of the best display bipes ever in UK ... the Skymaster. My original back in 80's had single low wing ailerons .... well this one I'm getting - same Mk 1, when I make her up - she will have dual ailerons ... ie top and bottom wing. How will I interconnect ? Rod on T/E's ... How will I actuate by servo ? Most likely by single servo and torque tubes in bottom wing.
Power ? Instead of the 60 IC I used in previous ... I shall go for a 15cc Petrol job ... ( I know this is Wattflyer .... but just illustrating that a big model can have such arrangement ).
solentlife is offline
Old 04-23-2011, 04:52 PM
  #24
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 6,122
Default

Originally Posted by solentlife View Post
Forgive me for puttiing it bluntly - the diagram you show with pushrod through slot and based on close to hinge line is daft ! Anyone who made such is asking for trouble.
I totally agree, it's stupid and nobody in their right mind would do it that way.. but i was just trying to illustrate a point.

i think we all agree TE to TE is best

Steve
JetPlaneFlyer is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
CHELLIE
Hi-Performance and Sailplanes
2015
05-28-2020 10:50 PM
phillipmorris
Beginners
197
07-23-2011 04:11 AM
earthsciteach
Beginners
9
04-10-2011 10:08 PM
Zocane
Scratch and Kit Built Aircraft
19
03-11-2011 03:21 AM
primo720
Beginners
8
02-27-2011 08:53 PM

Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Quick Reply: Need help!! Bi-plane ailerons


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.

Page generated in 0.12086 seconds with 19 queries
